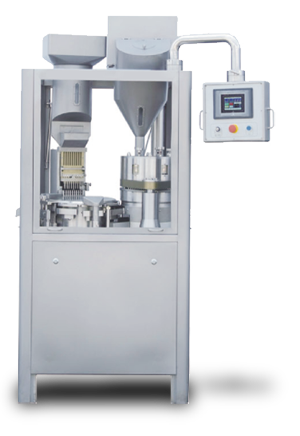

Automatic Capsule Filling Machine
Technical Specification
| SR. NO | PARTICULAR | CT - 25 |
| 1 | *Output / hr | 25,000 Capsules |
| UTILITIES | ||
| 1 | Power Supply 3 Phase, 415V, 50Hz |
3 Phase, 1 Neutral, 1 Earthling |
| 2 | Connected Load HP / Kw |
6/4 |
| 3 | Compressed Air | 4 CFM |
| MACHINE DIMENSIONS | ||
| 1 | Length (In mm) Width (In mm) Height (In mm) |
950 850 1930 |
| 2 | Floor Dimensions (In mm) | 3000 3000 2300 |
| 3 | Net Weight Approx. (Kgs) | 800 |
Technical Specification
| SR. NO | PARTICULAR | CT - 40 |
| 1 | *Output / hr | 40,000 Capsules |
| UTILITIES | ||
| 1 | Power Supply 3 Phase, 415V, 50Hz |
3 Phase, 1 Neutral, 1 Earthling |
| 2 | Connected Load HP / Kw |
6/4 |
| 3 | Compressed Air | 4 CFM |
| MACHINE DIMENSIONS | ||
| 1 | Length (In mm) Width (In mm) Height (In mm) |
950 850 1930 |
| 2 | Floor Dimensions (In mm) | 3000 3000 2300 |
| 3 | Net Weight Approx. (Kgs) | 800 |
Technical Specification
| SR. NO | PARTICULAR | CT - 90 |
| 1 | *Output / hr | 90,000 Capsules |
| UTILITIES | ||
| 1 | Power Supply 3 Phase, 415V, 50Hz |
3 Phase, 1 Neutral, 1 Earthling |
| 2 | Connected Load HP / Kw |
7.5 / 5.7 |
| 3 | Compressed Air | 4 CFM |
| MACHINE DIMENSIONS | ||
| 1 | Length (In mm) Width (In mm) Height (In mm) |
1200 1150 1950 |
| 2 | Floor Dimensions (In mm) | 3200 3200 2300 |
| 3 | Net Weight Approx. (Kgs) | 1500 |
Technical Specification
| SR. NO | PARTICULAR | CT - 150 |
| 1 | *Output / hr | 1,50,000 Capsules |
| UTILITIES | ||
| 1 | Power Supply 3 Phase, 415V, 50Hz |
3 Phase, 1 Neutral, 1 Earthling |
| 2 | Connected Load HP / Kw |
7.5 / 5.7 |
| 3 | Compressed Air | 4 CFM |
| MACHINE DIMENSIONS | ||
| 1 | Length (In mm) Width (In mm) Height (In mm) |
1200 1150 1950 |
| 2 | Floor Dimensions (In mm) | 3200 3200 2300 |
| 3 | Net Weight Approx. (Kgs) | 1500 |
