Semi Automatic Capsule Filling Machine

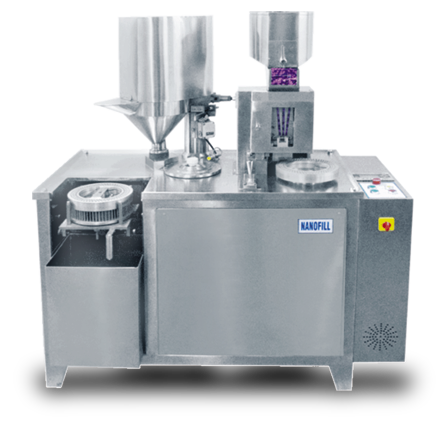

Technical Specification
| SR. NO | PARTICULAR | Nano Fill |
| 1 | *Output / hr | 12,000 Capsules |
| UTILITIES | ||
| 1 | Power Supply 3 Phase, 415V, 50Hz |
3 Phase, 1 Neutral, 1 Earthling |
| 2 | Connected Load HP / Kw | 2.7/2 |
| 3 | Compressed Air | 4 CFM |
| MACHINE DIMENSIONS | ||
| 1 | Length (In mm) Width (In mm) Height (In mm) |
1200 950 1550 |
| 2 | Floor Dimensions (In mm) | 2700 2400 2000 |
| 3 | Net Weight Approx. (Kgs) | 400 |

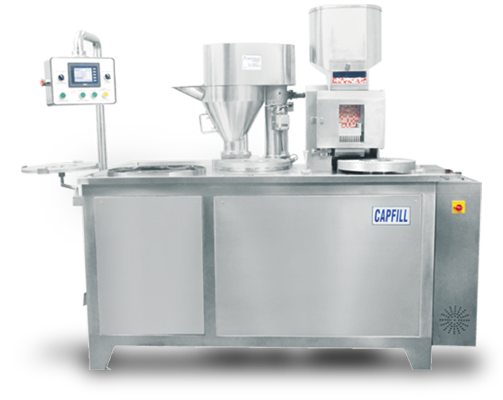

Technical Specification
| SR. NO | PARTICULAR | Capsule Fill |
| 1 | *Output / hr | 25,000 Capsules |
| UTILITIES | ||
| 1 | Power Supply 3 Phase, 415V, 50Hz |
3 Phase, 1 Neutral, 1 Earthling |
| 2 | Connected Load HP / Kw | 8.25/6.25 |
| 3 | Compressed Air | 8 CFM |
| MACHINE DIMENSIONS | ||
| 1 | Length (In mm) Width (In mm) Height (In mm) |
1800 1100 1700 |
| 2 | Floor Dimensions (In mm) | 3300 2600 2100 |
| 3 | Net Weight Approx. (Kgs) | 900 |

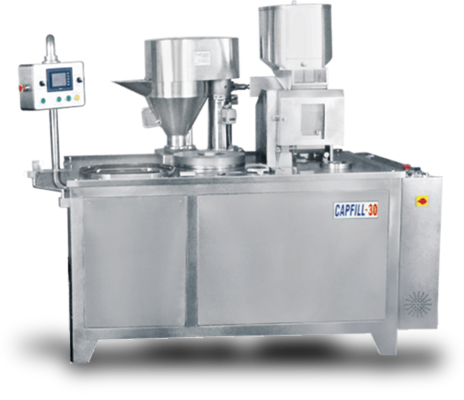

Technical Specification
| SR. NO | PARTICULAR | Capsule +30 |
| 1 | *Output / hr | 36,000 Capsules |
| UTILITIES | ||
| 1 | Power Supply 3 Phase, 415V, 50Hz |
3 Phase, 1 Neutral, 1 Earthling |
| 2 | Connected Load HP / Kw | 8.25/6.25 |
| 3 | Compressed Air | 8 CFM |
| MACHINE DIMENSIONS | ||
| 1 | Length (In mm) Width (In mm) Height (In mm) |
1850 1100 1700 |
| 2 | Floor Dimensions (In mm) | 3350 2600 2100 |
| 3 | Net Weight Approx. (Kgs) | 950 |

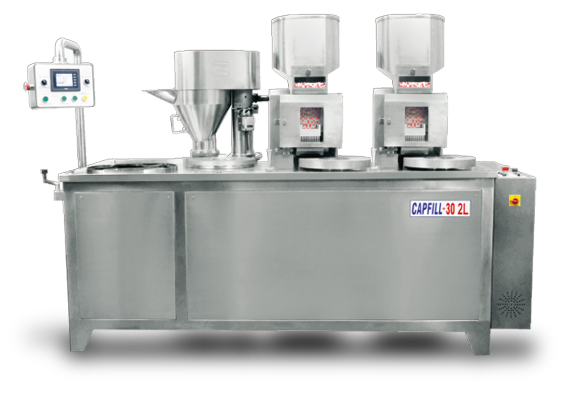

Technical Specification
| SR. NO | PARTICULAR | Capsule Fill |
| 1 | *Output / hr | 47,000 Capsules |
| UTILITIES | ||
| 1 | Power Supply 3 Phase, 415V, 50Hz |
3 Phase, 1 Neutral, 1 Earthling |
| 2 | Connected Load HP / Kw | 8.25/6.25 |
| 3 | Compressed Air | 8 CFM |
| MACHINE DIMENSIONS | ||
| 1 | Length (In mm) Width (In mm) Height (In mm) |
2500 1100 1700 |
| 2 | Floor Dimensions (In mm) | 400 2600 2100 |
| 3 | Net Weight Approx. (Kgs) | 1200 |
