CT 70
Output 70,000 capsules Per/hr
CT 150
Output 1,50,000 capsules Per/hr
Leading automatic capsule filling machine supplier in India for pharmaceutical industries
Captech Systems has designed fully automated capsule filling machines for filling powder, pellets granules and tablets separately or in combination such as powder+pellets, pellets+pellets, powder+tablet, pellets+powder+pllets, etc. in hard gelatin capsules. The machines are categorized based on their speeds and are available in capacities ranging from 40,000 capsules per hour up to 1,50,000 capsules per hour.
The powder dosing in achieved using the tamping pin principle wherein the powders are delivered to the capsule body in the form of a slug. The entire process of capsule filling is simplified to ensure automatic capsule alignment, separation, filling & closing, automatic rejection & ejections of un-separated capsules etc. The machine is designed for high filling accuracies and can fill the entire range of hard gelatin capsule sizes from 000 to 5.
The machine design fulfills the latest cGMP standards and allows quick changeover and cleaning with minimal tools.
Our automatic range of capsule filling machines has been designed with our experience spanning close to 2 decades and the technology available with us on secure filling and closing of capsules.
The machine control is by means of a programmable logic controller with touch enable human interface with a very user-friendly operable front end.
- For space – Indexer – Multi Dosing Fillings
- Combination Of Fillings
- Zero Dust *
- Barrier (Resistance) for Toxic Product
- Zero Maintenance
- Easy & Quick Change over
- Vibration
- ERGONOMIC Design
- Small Footprint
- User friendly
Technical Specification of Automatic capsule filler
Environment :
In Capsule Filling Room humidity and temperature is very important for Empty capsules and products.
Room Temperature: 20° to 25°C
Humidity: 40 to 44% RH
* Output depends upon the quality of capsules, character of the products & environmental conditions.
Features of Reliable Automatic Capsule Filling Machine
- cGMP-compliant design and construction.
- Accurate capsule separations without damaging capsules with a wide range of different capsules.
- Automatic ejection system for non-separated / improperly inserted capsule caps.
- High accurate dosing
- Quick fill weight adjustments and high precision dosing tolls ensure optimum machine efficiency
- Easy and simplified size changeovers and low cleaning times.
- Conditions apply
Empty Capsule Sorter

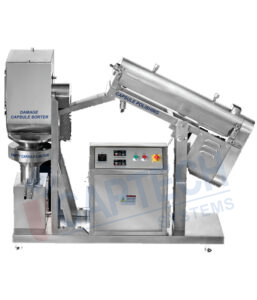

Polishing Sorting Machine

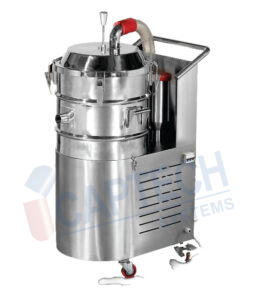

Dust Extractor for Main Machine
Dust Extractor for Polishing

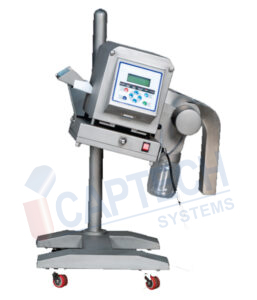

Metal Detector

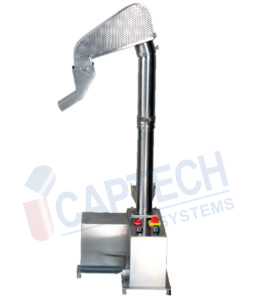

Filled Capsule Elevator
Blog
Automatic Capsule Filling Machine Manufacturer in India
Discover high‑performance automatic capsule filling machines designed for modern pharmaceutical and nutraceutical manufacturing. Our fully automatic systems ensure precise, consistent filling of hard gelatine / HPMC capsules from sizes 00 to 5, handling powders, granules, and pellets with minimal operator intervention. Ideal for small‑scale units and large‑volume plants, these machines deliver accurate dosing, high output, and seamless integration into existing production lines.
As a leading manufacturer of automatic capsule filling machines in India, we focus on reliability, hygiene, and long‑term productivity. Our GMP‑compliant capsule filling machines are built with 316L stainless steel contact parts, fully enclosed operation, and easy‑clean design to meet strict pharma and regulatory standards. Operators benefit from intuitive touch‑screen controls, real‑time monitoring, and PLC‑based automation that optimise uptime and reduce product changeover time.
Each automatic capsule filling and locking machine performs capsule orientation, separation, powder filling, tamping, and locking in a single continuous process. The automatic capsule filling machine process ensures uniform capsule weight, minimal dust, and low capsule rejection, while integrated capsule polishing removes static and residue for a clean, professional finish. The capsule filling machine with capsule polisher is especially suited for high‑quality capsule products that require smooth surfaces and consistent appearance.
For integrated manufacturing setups, our capsule filling machine for tablets and capsules line can be coupled with blister packaging, and cartoning systems. Capable of serving both small pharma units and large FDC‑oriented facilities, our machines offer scalable capacity and robust engineering. Whether you want to buy an automatic capsule filling machine or evaluate the automatic capsule filling machine price, our team provides tailored solutions, technical support, and installation guidance to suit your production volume and budget.
