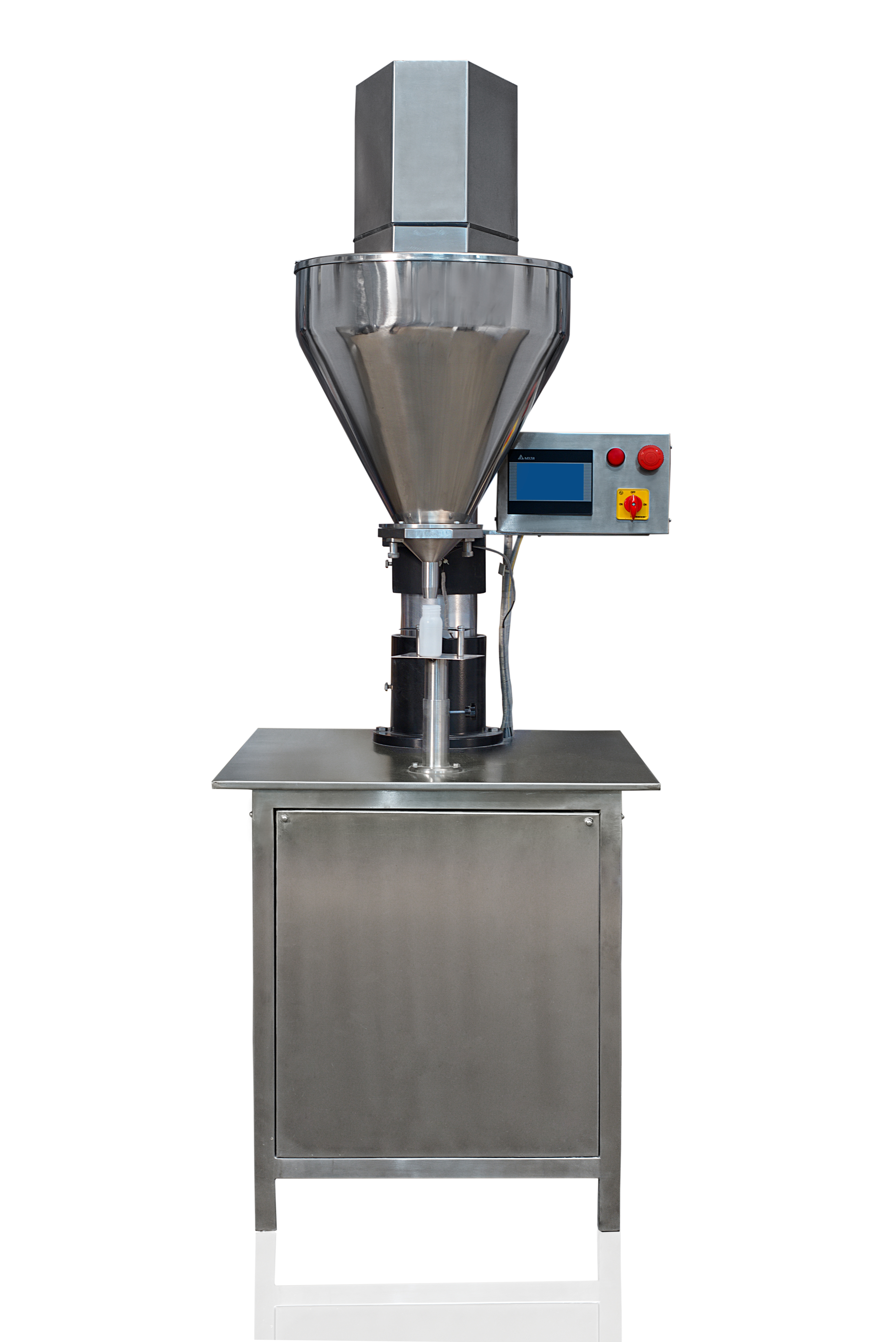

This is Auger type Dry Powder filling machine with Servo Drive Mechanism which is suitable for free flowing dry powder. It is available in Single head, Double head and Triple head as per required output. This machine is designed to be energy efficient and it consumes very less power.
It is very Operator friendly machine which was designed to serve the application needs of diverse industries for a long period of time with consistent performance.
This machine is available as a stand-alone system or with complete line that includes Air Jet Cleaning machine, Dry Powder Filling machine, Screw Capping or ROPP Capping, Induction Sealing, Sticker Labelling and Packing Conveyor.

Technical Specification:
•  Output                        : 10 to 25 Bottles / Minute in Single head Semi
                                           Automatic Dry Powder Filling Machine
                                           30 to 40 Bottles / Minute / Head in Automatic
                                           Conveyor type machine
Note:Output subject to character of Powder, Neck dia of bottle and shape of container.
•  Contact Parts                           : SS316
•  Non Contact Parts                  : SS304
•  Bottle Dia                                 : 22 to 75mm
•  Accuracy of Fill weight           : 3%
•  Suitable of Fill volume           : 5 to 100 gm
•  Change Parts common for   : 5 to 15 gm
                                                      15 to 30 gm
                                                      30 to 50 gm
                                                      50 to 75 gm
                                                      75 to 100 gm

Technical Specification:
•  PLC Control with colour HMI
•  Easy to change over
•  No spillage because of Servo Mechanism
•  No bottle No Filling
