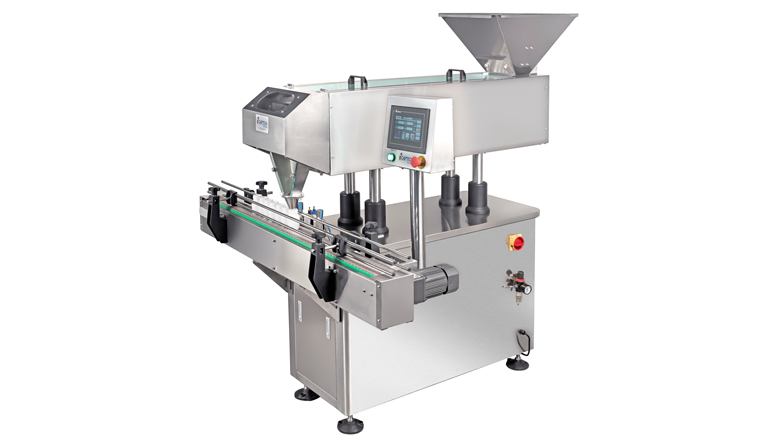

TCLB Model Tablet/Capsule Linear Base Automatic Counting Machines to count any type and size of tablet, capsules & soft gel. Filling part that ensures no breakage of products during counting and filling in bottle.
The counting is accurate due to advanced sensors to detect the products. The machine consists with HMI and PLC to make control and easy to operate.
Features :
- Compact design.
- Stainless Steel or Delrin conveyor noise free operation.
- PLC Control System. Easy operation by Touch Screen
- Count Tablets & capsules of different sizes without needing to change the change parts.
- Counting accuracy 99%
- “No bottle – No count and fill” system
Technical Specification :
| Particular | TCLB |
| 1 Output | 25 to 30 Bottles / Minute |
| 2 Bottle Size | Dia 25 to 65 mm. |
| 3 Compressed Air | 2 Kg at 100 PSI/2 CFM |
| 4 Power supply | Single Phase, 220V, 50Hz |
| 5 Dimensions | (L) 1360mm X (W)1250mm x (H) 1600 mm Approx. |
